Luna-JR


Function

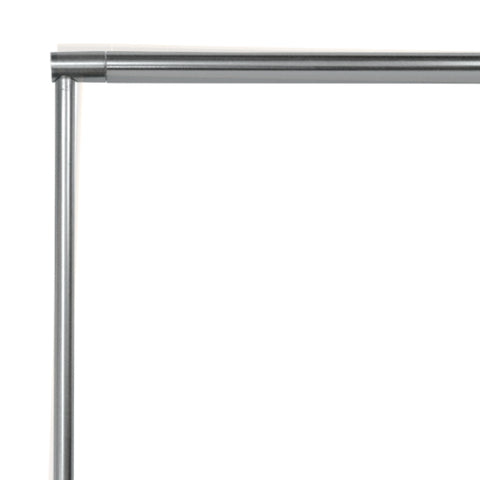

The slimmer companion to the original Luna retaining its many groundbreaking features and flawless finishes, now with a much slimmer 3/8” (9.5mm) diameter. A high output stem mounted lighting fixture with its main body able to rotate a full 360° to highlight any object on display. High color accuracy LEDs specified up to 95+ CRI.

Always sold in customized lengths and stem heights to the customer’s specifications. When ordering please use a Revlite shop drawing order template.

Many finishes available. Custom metal finishes include bronze and polished brass upon request.

Features
  • 90° beam angle with soft light optics with no visible hotspots.

  • Slim 3/8” (9.5mm) heat sink body.

  • Light source: High Density High CRI LEDs (2700K, 3000K, 3500K, 4000K, 5000K).

  • Simple 24VDC power input: no constant current. Fixture may be daisy chained to other fixtures on the same power supply.

  • Ordered customized to your design lengths up to a maximum of 66 1/2” (lengths 42” or beyond we recommend a center support). When ordering please use a Revlite shop drawing order template.

  • Customized stem heights up to 20”.

  • Stems are tuneable to exacting on site height dimensions. Set screw locking.

  • Power consumption / Illumination options: 4W/ ft., 6W/ ft.

  • Custom finishes available.

  • cULus Listed.

Applications
  • Showcase Lighting
  • Exhibit Lighting
  • Retail Displays
  • Lectern Lighting
