Often a designer of retail environments is left to solve a growing design conundrum in modern retail. How to illuminate modern curved showcases and circular vitrines. U-shaped, elliptical and circular showcases are popping up everywhere in modern
retailscapes. Typically, the answer is to add a plethora of vertical fixtures every foot or so or, install a combination of straight linear fixtures in a segmented or pixilated fashion with vertical fixtures to fill in the gaps in an attempt to illuminate the curves.

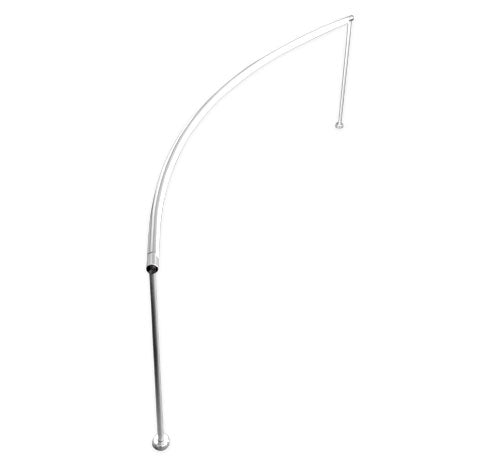

The answer to this conundrum is the Revlite Luna-Jr-Arc. This fixture has all the features of the straight Luna Jr with the added benefit of being infinitely variable in its curve allowing it to mirror the shape of the showcase or vitrine in which it is installed. Further the fixture can be combined with “T” blocks shown in the accessory section to form a continuous curved linear fixture illuminating any lengthy curved glass on glass showcase with consistent illumination. The lens of the Luna Jr-Arc is perfectly positioned at a 45° angle from the vertical and with a 90° beam spread illuminating the cabinet without any visible glare to the viewer.

Luna Jr-Arc is formed by roll forming and hand finishing according to the radius chosen by the client’s CAD design. Most radii can be accomplished from 20” upwards with lengths up to 76”.

  • Bend radius as tight as 20" (508mm).
  • 90° beam angle with soft light optics with no visible hotspots.

  • Slim 3/8” (9.5mm) heat sink body.

  • Light source: High Density High CRI LEDs (2700K, 3000K, 3500K, 4000K, 5000K).

  • Simple 24VDC power input: no constant current. Fixture may be daisy chained to other fixtures on the same power supply.

  • Ordered customized to your design lengths up to a maximum of 72” (lengths 42” or beyond we recommend a center support). When ordering please use a Revlite shop drawing order template.

  • Customized stem heights up to 20”.

  • Stems are tuneable to exacting on site height dimensions. Set screw locking.

  • Power consumption / Illumination options: 4W/ ft., 6W/ ft.

  • Custom finishes available.

  • cULus Listed.

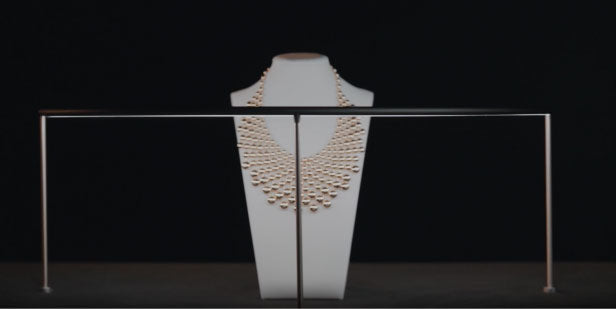

  • Showcase Lighting
  • Exhibit Lighting
  • Retail Displays
