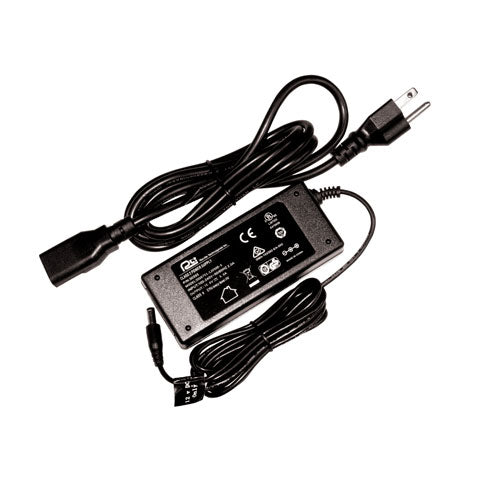

Revlite’s power supply is one 60W single-output external LED power supply series. Pairing the North American type of AC plug and the prevailing DC connectors, RPS-1260-120-240, working like an adaptor, simplifies the connection with LED lighting fixtures by using a DC connector direct plug in. The entire series is certified with the cULus listed for dry and damp locations.
As a class 2 design, the enclosure of RPS-1260-120-240 is a 94V-0 flame retardant plastic case. The interior is fully potted with silicone that enhances the heat dissipation. With the working efficiency up to 91%, RPS-1260-120-240 is cooled by free air convection; the working temperature ranges from -40°C to +70°C.
FEATURES
Universal AC input/full range
Built-in active PFC function
High efficiency up to 91%
Protections: short circuit/over current/over voltage/over temperature
