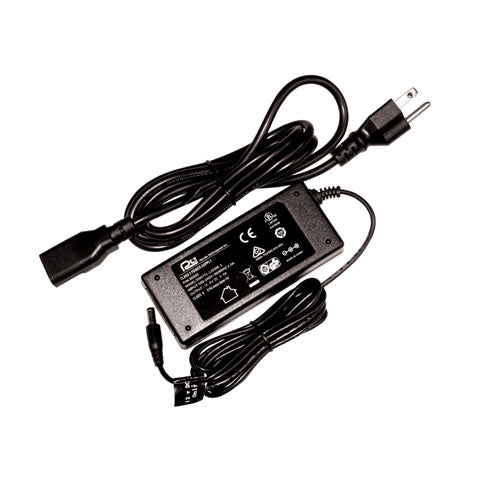

RPS-24 Series


  • Revlite’s power supply is one 24-90W single-output external LED power supply series. Pairing the North American type of AC plug and the prevailing DC connectors, RPS-24 Series, working like an adaptor, simplifies the connection with LED lighting fixtures without extra wiring efforts. The entire series is certified with the cULus listed for dry and damp locations.
  • As a class 2 design, the enclosure of RPS-24 Series is a 94V-0 flame retardant plastic case. The interior is fully potted with silicone that enhances the heat dissipation. With the working efficiency up to 91%, RPS-24 Series is cooled by free air convection; the working temperature ranges from -40°C to +70°C.
    • Universal AC input/full range
    • Built-in active PFC function
    • High efficiency up to 91%
    • Protections: short circuit/over current/over voltage/over temperature
    • Class 2 power unit
    • No load power consumption < 0.15W
    • Energy efficiency level VI
    • cULus listed, suitable for dry and damp locations
    • 5 years warranty
