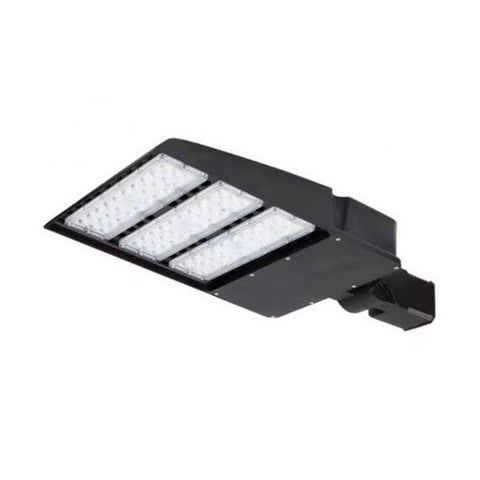

The Revlite Shoebox Road Street Lights are a series of modular cast aluminum fixtures designed for most typical roadway and parking lot applications. Each fixture is comprised of a series of LED power modules with integral lenses and optics to function as a cohesive whole. To increase the light output simply specify the fixture with additional modules. Each module is 50W and when connected together can be built into a fixture of 300W or greater. Fully IP65 watertight this fixture can survive anything that nature can throw at it. Smart controls are an optional extra as is PWD (Passive Wildlife Deterrent) measures to ensure that birds and other creatures do not foul the fixture with nesting materials. Available in Silver or Black and in 3 CCT range to suit most environments.


  • 170lm/w Phlipps/Bridgelux 3030.
  • PMMA len, more than 90% light transmittance.
  • Aviation grade aluminum housing.
  • Led power driver: 5 years warranty.
  • Power: 100W/150W/240W/300W + custom
  • CCT: 3000K – 5000K
  • IP: 65
  • Power Factor (PF):> 0.95
  • Driver Efficiency:> 90%
  • Lumen Maintenance:>67000hours-@25℃
